Dimensions of the straight drinking machine How to install the straight drinking machine Picture of

Dimensions and installation requirements of UR-313AS-3 are as follows:

1, power requirements: 220V, 50HZ, 16A independent socket (single water dispenser power: 2.3KW);

2, hot water capacity: 23L, warm water capacity: 7.8L; Ice water capacity: 3.9L;

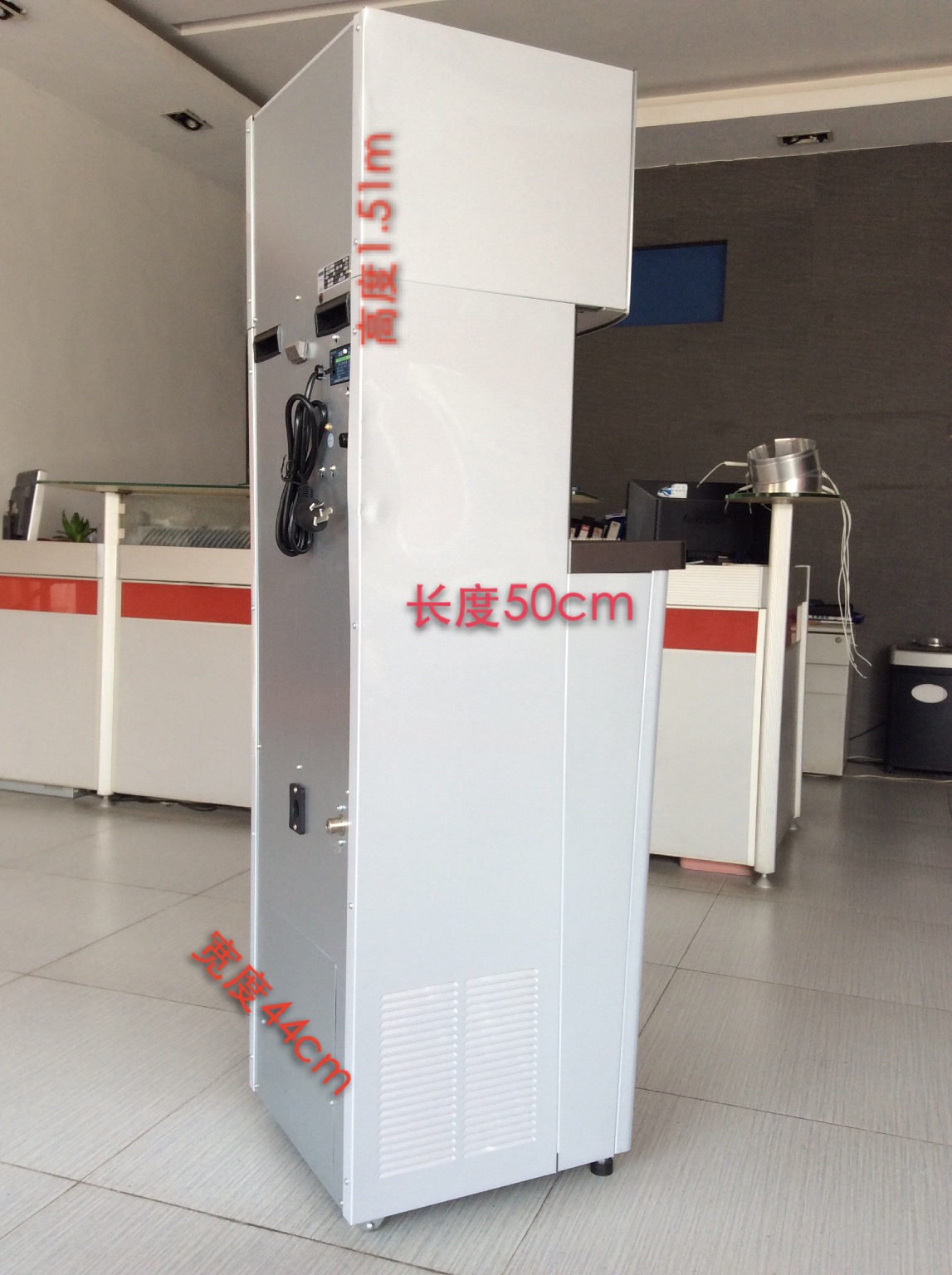

3, machine size: width * depth * height: 439*505*1500mm

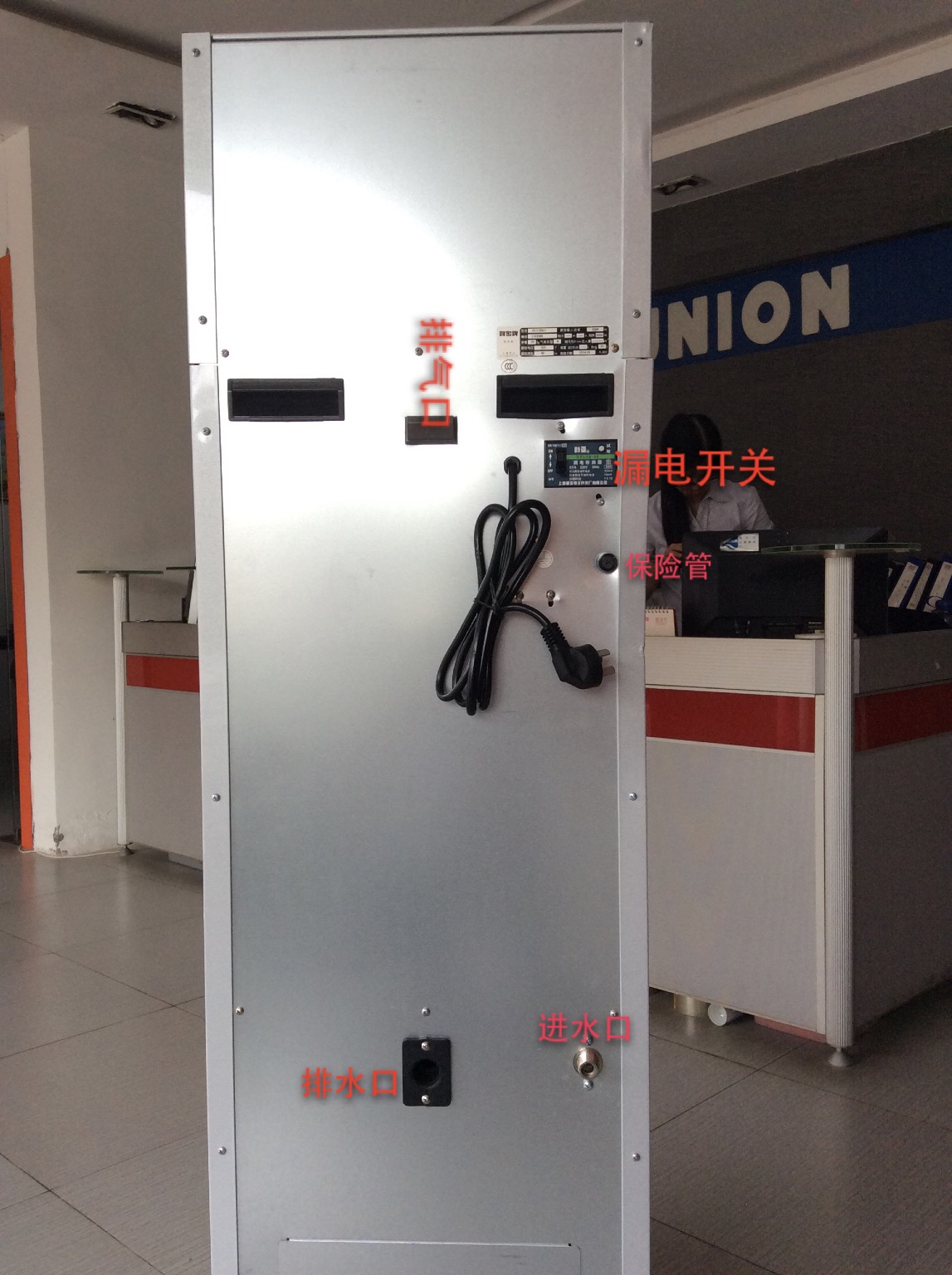

4, upstream and downstream water: stainless steel inlet pipe or PPR(water dispenser with Angle valve and external teeth through) : DN20mm,PN: 2.0mpa, DRAINAGE pipe PVC: DN40mm or DN50mm,PN: 1.6mpa, must be kept smooth;

5, water and electricity in place within 1 meter package installation;
